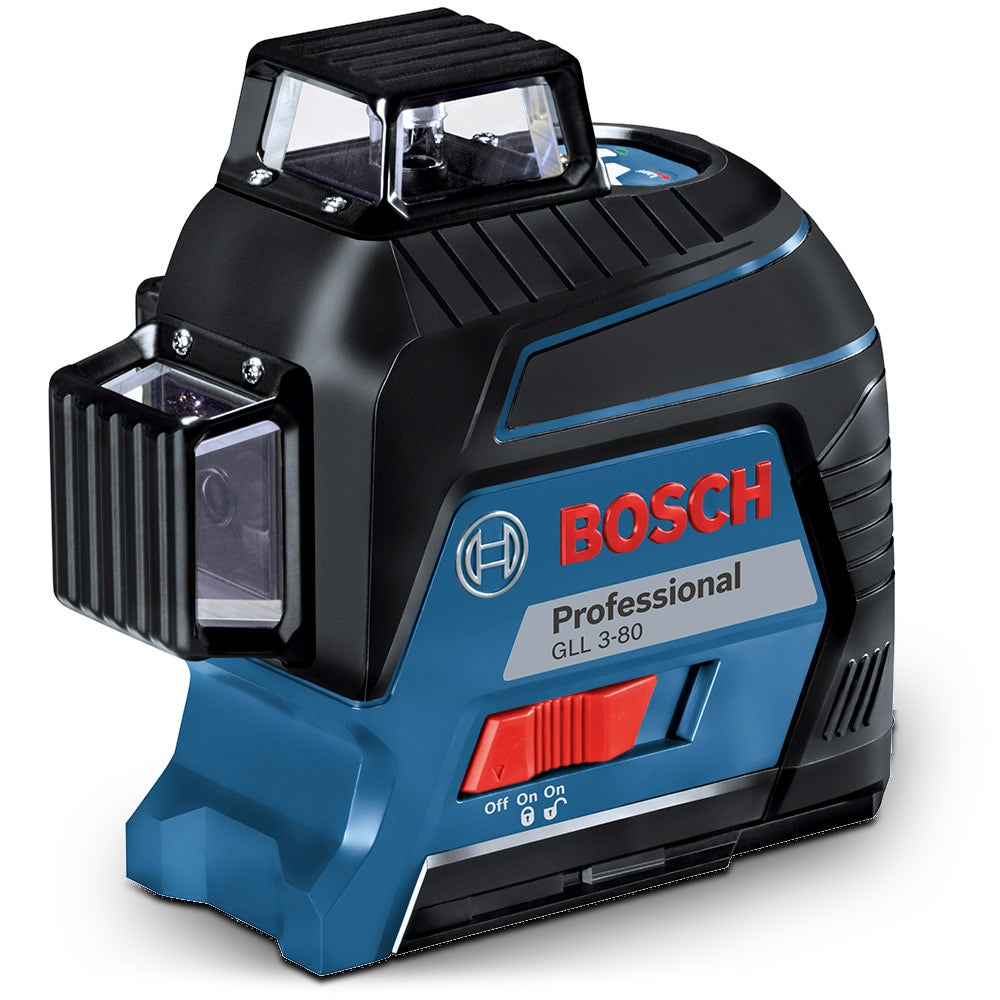

The compact GLL3-80 Multi Line Laser is suitable for most indoor marking and alignment applications.

• Self-levelling
• High level of precision/accuracy (± 0.2mm/m)
• Three 360 degree beams/lines
• One 360 degree horizontal line
• Two 360 degree vertical lines
• Pendulum lock ensures safe transport
• Extended working range (up to 80m) when used with optional receivers (LR6 or LR7)
• Extra bright laser - superior visibility

Specifications

• Operating Range (without receiver): 30m (Radius)
• Operating Range (with receiver): 120m (Diameter)
• Accuracy: ± 0.2mm/m
• Self-Levelling Range: ± 4 degrees
• Levelling Time: 4 seconds
• Dust and Splash Protection: IP54
• Laser Class: 2
• Laser Diode: Line 630 - 650 nm, <10mW
• Laser Colour: Red
• Operating Temperature: -10 - 40 degrees Celsius
• Storage Temperature: -10 - 70 degrees Celsius
• Power Supply: 4 x 1.5V LR6 (AA batteries)
• Operating Time (max): 4 hours (in 3-line mode)
• Tripod Thread: 1/4" & 5/8"
• Weight (approx.): 0.82kg

Includes

• GLL3-80 Multi-Line Laser Level
• Laser Target Plate
• 4 x 1.5V (AA) Alkaline Batteries
• Nylon Pouch
• Carry Case

Specification

Specifications

Videos & Manuals

Videos

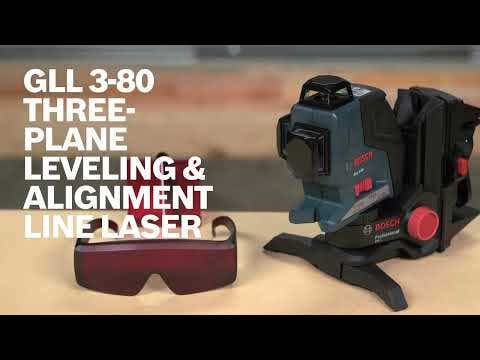

Bosch Multi Line Laser Level 3x360 GLL3 80

Bosch GLL 3 80 360 Degree 3 Plane Leveling and Alignment Line Laser Product

Manuals

• Bosch Multi Line Laser Level 3x360 GLL3-80 - Manual
